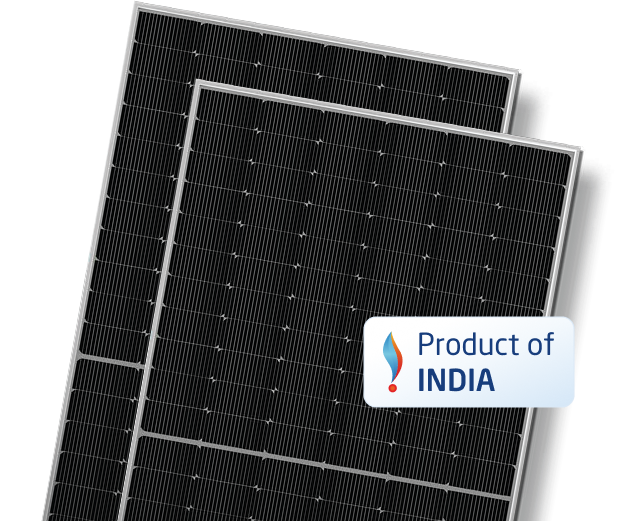

ISH SUPREME-TG12R-66H-610-650WP – IshSolar – Energy of ISH and power of yours

12 Years of

Product Warranty

30 Years of Linear

Power Warranty

610-650 Wp

G12R

Bifacial Module With Dual Glass

610-650 Wp

G12R

Bifacial Module With Dual Glass

Special Features

N-Type Technology

Up to 30% Additional Power Gain when compared with conventional P-type module

Higher Power Generation

Excellent anti-PID performance via optimized process and materials control. Lower susceptibility to LID & LETID

Lower
LCOE

Lower balance of systems cost. Improved value proposition of the product with competitive ROI

0% Negative Power Tolerance

Positive power tolerance of upto 0~ 4.99Wp. Module current binning radically reduces string mismatch losses

Rigorous Testing Criteria

Four Stage EL inspection by Al to ensures high quality defect free Solar modules

Optimized Heat Resistance

Optimized temperature co-efficient via advanced graphical patterned busbar and multi cell technology

Built for performance, Designed for the future.

Technical Parameters

Operating Condition

Power Tolerance 0~+5W

Maximum System Voltage 1500

Maximum Series Fuse Rating 30A

Nominal Operating Cell Temperature (NOCT) 42±2°C

Max. Surface Load Capacity, Pa 5400

Max. Wind Speed Capacity, Pa 2400

Safety Class Class II

Hail Impact Velocity, m/sec 23

Mechanical Characteristics

Cell Type N-Type TOPCon

No. Of Cells 132 (66 x 2) Pcs

Dimensions 2382 x 1134 x 35mm

Weight 33.4 kg

Front Glass 2.0 mm, Low Iron, Heat Strengthened AR Coated

Back Glass 2.0 mm, Low Iron, Heat Strengthened Glass

Frame T6 Anodized Aluminum Alloy

Junction Box IP 68, Split Junction Box With Individual Bypass Diodes

Output Cables 4.0 mm2 (+): 400mm, (-): 400mm Or Customized Length

Packaging Configuration

Container 40'HC

Height Of Modules (mm) 35 30

Number Of Modules Per Pallet 31 36

Number Of Pallets Per Container 20 20

Number Of Modules Per Container 620 720

Temperature Coefficients

Tc Of Open Circuit Voltage (B) -0.25%/°C

Tc Of Short Circuit Current (A) 0.045%/°C

Tc Of Power (Г) -0.3%/°C

Temperature Range -40°C TO + 85°C

12

Years of

Product Warranty

30

Years of Linear

Power Warranty

610-650 Wp

G12R

Bifacial Module With Dual Glass

610-650 Wp

G12R

Bifacial Module With Dual Glass

Special Features

N-Type Technology

Up to 30% Additional Power Gain when compared with conventional P-type module

Higher Power Generation

Excellent anti-PID performance via optimized process and materials control. Lower susceptibility to LID & LETID

Lower
LCOE

Lower balance of systems cost. Improved value proposition of the product with competitive ROI

0% Negative Power Tolerance

Positive power tolerance of upto 0~ 4.99Wp. Module current binning radically reduces string mismatch losses

Rigorous Testing Criteria

Four Stage EL inspection by Al to ensures high quality defect free Solar modules

Optimized Heat Resistance

Optimized temperature co-efficient via advanced graphical patterned busbar and multi cell technology

Built for performance, Designed for the future.

Technical Parameters

1%

First-Year Degradation

0.4%

Annual Degradation (Over 30 years)

Ish Supreme

ISH-TG12R-66H

610-650 Wp
